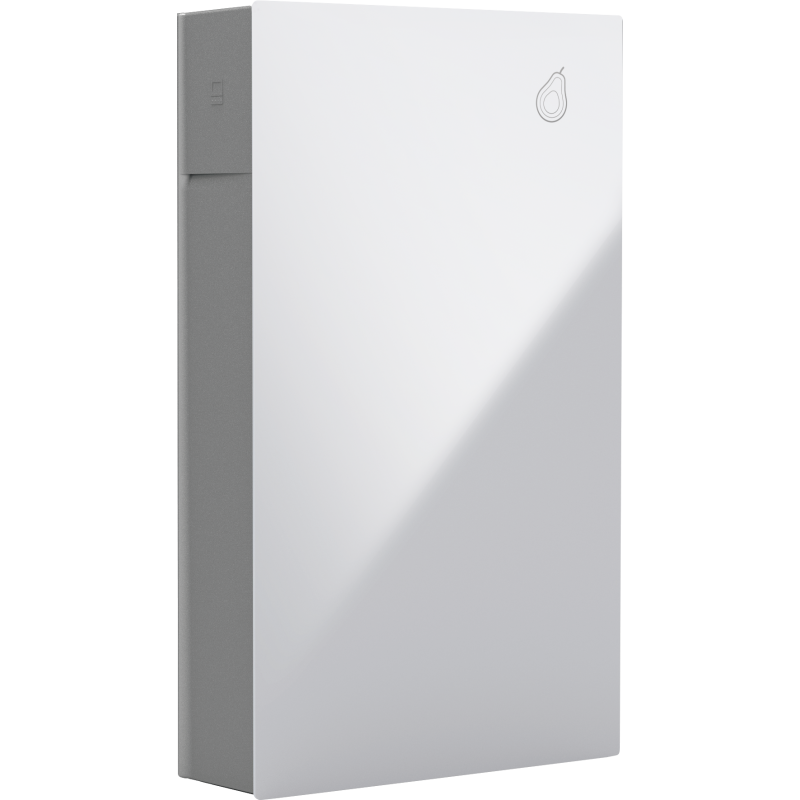

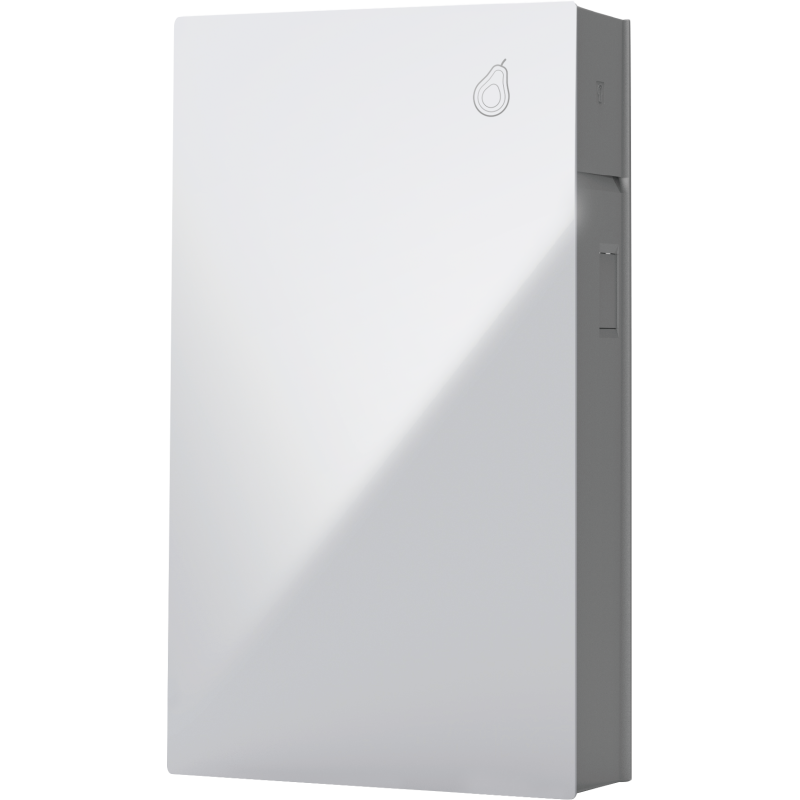

Hybrid Bundle Fox ESS P100-6-H (6 kW Inverter + 10 kWh Battery Storage System with BMS)

An all-in-one premium solution engineered to deliver reliable and uninterrupted power to your home. This complete energy package includes a powerful 6 kW single-phase hybrid inverter combined with a 10 kWh high-voltage battery storage system and an intelligent Battery Management System (BMS). Because all equipment is manufactured by a single brand (Fox ESS), the system operates with seamless synchronization, maximum efficiency, and prolonged operational lifespan.

Advantages:

• High Energy Capacity (10 kWh): Provides extended backup energy during long-term grid outages. This reserve is sufficient to power critical household loads (refrigerator, lighting, routers, heating pumps, TV) through the night or even an entire day.

• Perfect Ecosystem Compatibility: Developed by the same manufacturer, the inverter and battery communicate instantly without delay or protocol conflict, guaranteeing optimal round-trip efficiency.

• Intelligent BMS (Battery Management System): An integrated smart controller that continuously monitors the status of each individual cell, preventing overcharging, deep discharging, and over-temperature issues.

• High-Voltage (HV) Technology: Operating at a higher nominal voltage allows the system to achieve ultra-fast charging from solar arrays or the grid with minimal thermal and energy conversion losses.

• Instant Backup Power (EPS): In the event of a power blackout, the system transitions your home to battery power within milliseconds — your appliances will not experience any operational disruption.

• Advanced Lithium Chemistry (LiFePO₄): Utilizing the safest and most durable technology available, these batteries offer over 6,000 charge/discharge cycles (translating to more than 10 years of daily operation).

Ideal For:

• Private residences equipped with a single-phase connection and a moderate-to-high energy consumption profile.

• Homeowners experiencing frequent and prolonged grid failures (exceeding 6–8 hours) who require a solid energy reserve.

• Users seeking a turnkey, aesthetically integrated, and factory-balanced energy system without the need to source components from separate manufacturers.

Technical Specifications:

• Nominal Inverter Capacity: 6 kW

• Battery Storage Capacity: 10 kWh

• Battery Chemistry Type: High-Voltage (HV) LiFePO₄ (Lithium Iron Phosphate)

• Phase Architecture: 1-Phase (Single-Phase)

• Number of MPPT Trackers: 2

• Depth of Discharge (DoD): Up to 90%

• Battery Cycle Life: >6,000 Cycles

• Ingress Protection Rating: IP65 (Suitable for outdoor installation under a protective canopy)

• System Monitoring: Wi-Fi (Via FoxCloud Application)

• Warranty Coverage: 10 years (Applies to both inverter and battery system)

Explanation of Terms:

• BMS (Battery Management System) – The "brain" of the energy storage bank. This control board precisely governs the charging and discharging cycles, ensuring absolute operational safety and extending battery life.

• LiFePO₄ (Lithium Iron Phosphate) – A highly stable and modern lithium battery chemistry. These cells are highly resilient to deep discharges, immune to thermal runaway (fire hazards), and last 3 to 4 times longer than conventional lead-acid or gel batteries.
