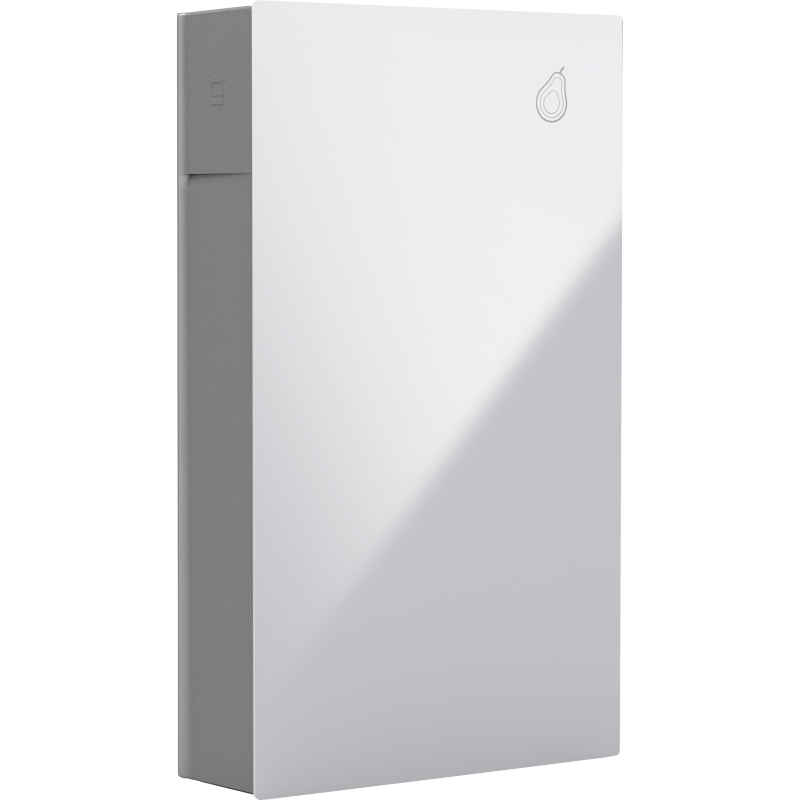

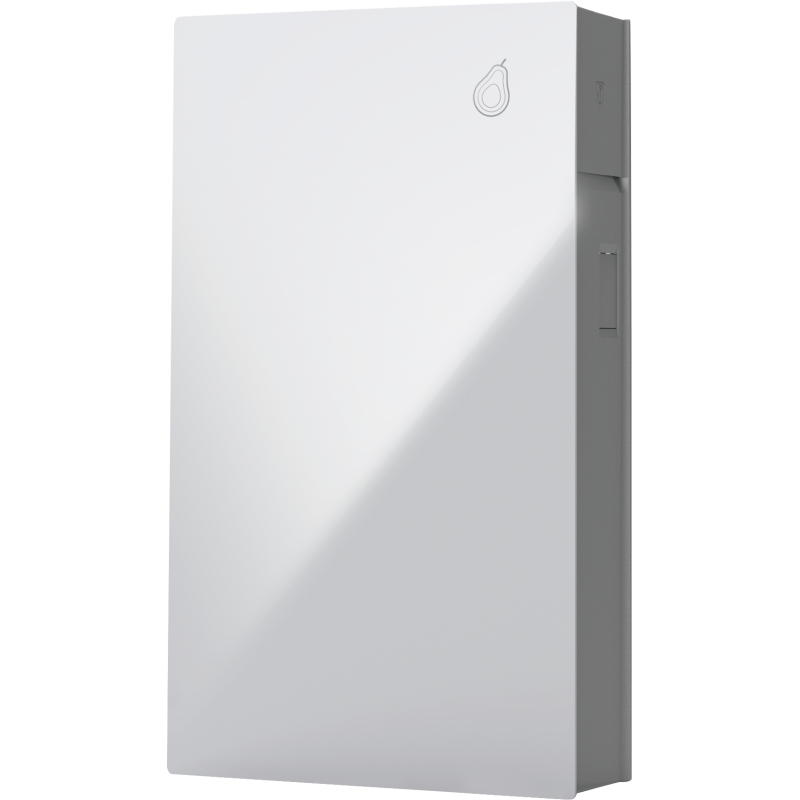

Hybrid Bundle Fox ESS P100-10-H (10 kW Inverter + 10 kWh Battery Storage System with BMS)

The most powerful all-in-one premium single-phase solution from Fox ESS, engineered for absolute energy independence. This flagship bundle consists of a hybrid inverter with a record-breaking 10 kW single-phase capacity and a 10 kWh high-voltage battery storage block featuring an integrated intelligent Battery Management System (BMS). This station is capable of powering even the most demanding households with a large array of heavy appliances during prolonged grid outages.

Advantages:

• Record 10 kW Inverter Output: Allows you to power an entire arsenal of heavy equipment (EV chargers, heat pumps, central air conditioning, electric boilers) without any risk of system overload.

• High Energy Capacity (10 kWh): Ensures extended autonomous operation for critical loads or allows you to comfortably ride out blackouts without limiting your appliance usage.

• Perfect Ecosystem Compatibility (One-Brand Solution): The inverter and battery are engineered by the same manufacturer. This completely eliminates any hardware conflicts and guarantees maximum round-trip efficiency of the station.

• Intelligent BMS (Battery Management System): An integrated controller continuously analyzes the status of each individual cell, protecting the battery from overcharging, deep discharging, and over-temperature issues.

• High-Voltage (HV) Technology: Delivers ultra-fast charging from solar arrays or the grid due to lower operational currents and minimal power conversion losses.

• Advanced Lithium Chemistry (LiFePO₄): Utilizing the safest technology on the market, these cells are highly resilient to deep discharges and offer over 6,000 cycles (more than 10 years of daily operation).

Ideal For:

• Large private residences with a single-phase connection and exceptionally high energy consumption.

• Homeowners planning to connect under the "Green Tariff" (Feed-in Tariff) at the maximum 10 kW capacity on a single phase.

• Users seeking an uncompromising, turnkey solution to power heavy loads (EVs, heat pumps) during blackouts.

• Clients who value aesthetics, compactness, and the reliability of pre-packaged, plug-and-play energy systems.

Technical Specifications:

• Nominal Inverter Capacity: 10 kW

• Battery Storage Capacity: 10 kWh

• Battery Chemistry Type: High-Voltage (HV) LiFePO₄ (Lithium Iron Phosphate)

• Phase Architecture: 1-Phase (Single-Phase)

• Max. Solar Array Power: Up to 15 kW

• Depth of Discharge (DoD): Up to 90%

• Battery Cycle Life: >6,000 Cycles

• Ingress Protection Rating: IP65 (Suitable for outdoor installation)

• System Monitoring: Wi-Fi (Via FoxCloud Application)

• Warranty Coverage: 10 years (Applies to both inverter and battery system)

Explanation of Terms:

• BMS (Battery Management System) – The "brain" of the energy storage bank. This control board precisely governs all processes within the battery, extending its operational lifespan and making its use 100% safe for the home.

• LiFePO₄ (Lithium Iron Phosphate) – Next-generation lithium elements. The most advanced battery type available: they are thermally stable, immune to ignition, charge rapidly, and last 3 to 4 times longer than conventional lead-acid counterparts.
