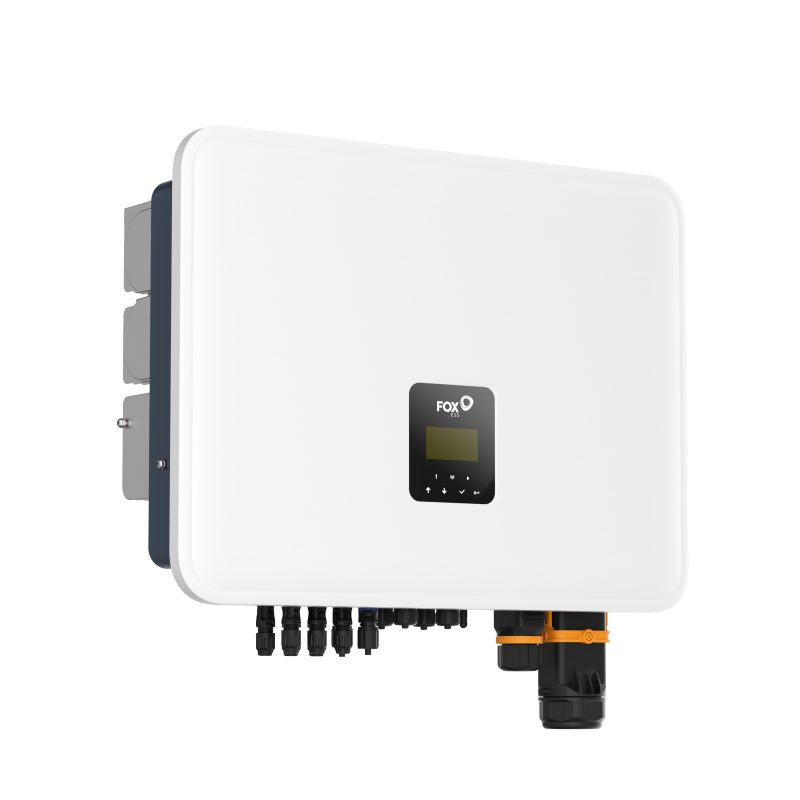

Hybrid Inverter Fox ESS P3-10.0-SH (10 kW, 3 Phases, High Voltage)

The next-generation three-phase hybrid inverter with a capacity of 10 kW is a premium and innovative solution from Fox ESS designed to create a reliable and high-performance home or commercial energy system. The key feature of this model is its compatibility with High Voltage (HV) batteries and a three-phase grid, which ensures maximum system efficiency, balanced phase loading, fast battery charging, and minimal energy losses.

Key Advantages:

• Three-Phase Balanced Output: Ideal for modern homes and small businesses, ensuring even power distribution across all three phases.

• High Voltage (HV) System: Reduces energy losses, ensures faster charging, and delivers higher performance compared to standard low-voltage alternatives.

• Instant Backup Power (EPS): Automatic and seamless power supply for your critical and heavy three-phase appliances during sudden power outages.

• Advanced FoxCloud Monitoring: Convenient real-time control of energy generation and consumption via your smartphone (Wi-Fi/LAN modules supported).

• High Efficiency up to 98.0%: Superior efficiency in converting solar energy into the grid or storage system.

• Dual MPPT Trackers: Allows for solar panel installation on different roof slopes to optimize stable generation throughout the day.

• Compact & Durable Design: Modern minimalist appearance, robust housing, and quiet, intelligent cooling (IP65 protection class for outdoor installation).

Ideal For:

• Private houses and light commercial properties with a three-phase grid connection and high energy consumption.

• Homeowners requiring a powerful backup solution capable of running heavy household appliances during blackouts.

• Properties where maximum efficiency, advanced phase management, and high equipment reliability are essential.

• Solar systems tailored for Feed-in Tariffs or maximizing self-consumption.

Technical Specifications:

• Nominal Output Power: 10 kW

• Max. PV Array Power: 15 kW (up to 150% oversizing)

• Phase: 3-Phase (three-phase)

• Compatible Battery Type: High Voltage (HV) Li-ion

• Battery Operating Voltage Range: 180–800 V

• Number of MPPT Trackers: 2

• Maximum System Efficiency: Up to 98.0%

• Communication Interfaces: Wi-Fi, LAN, RS485, CAN

• Protection Degree: IP65 (dust and waterproof, suitable for outdoor installation)

• Base Official Warranty: 10 years

Glossary:

High Voltage (HV) Battery — A battery system with a high operating voltage (180V to 800V). It enables the inverter to operate with lower currents, reducing cable heat generation and significantly increasing the overall efficiency of the solar station.

EPS (Emergency Power Supply) — A backup power function that instantly switches the three-phase system to battery power when a grid outage occurs.

FoxCloud — The official smartphone application that provides intuitive charts tracking how much energy the panels generate, how much goes into the battery, and how much the property consumes.
