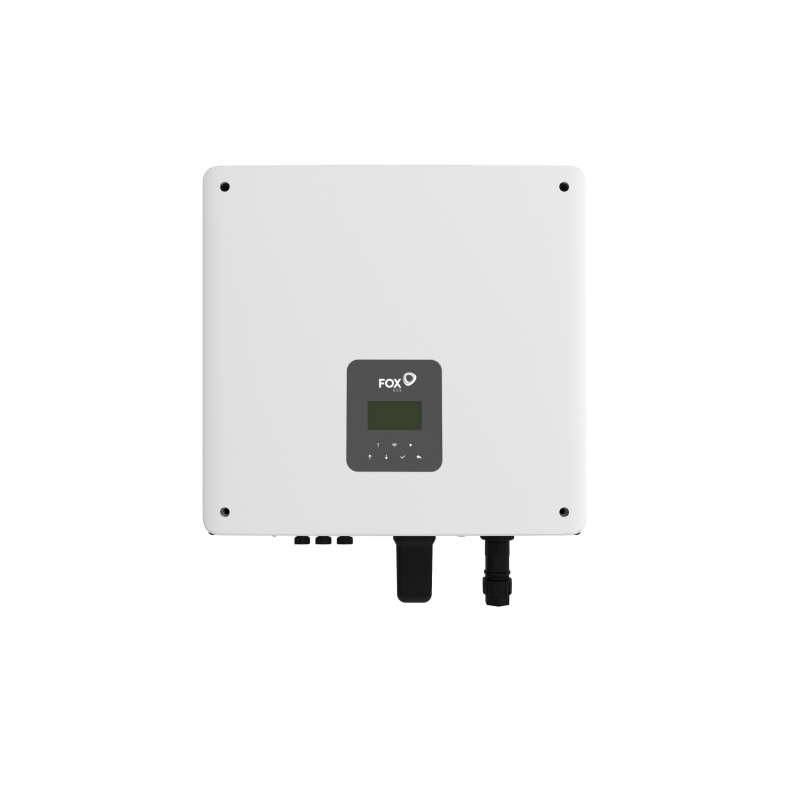

Hybrid Inverter Fox ESS H1-6.0-G2-WL (6 kW, 1 Phase, High-Voltage)

A new generation (G2) single-phase hybrid inverter with a capacity of 6 kW. This is a premium and innovative solution from Fox ESS designed to create a reliable residential energy system. The key feature of this model is its compatibility with high-voltage (HV) batteries, which ensures maximum system efficiency, fast battery charging, and minimal energy losses.

Advantages:

• High-Voltage (HV) System: Reduces energy losses, ensures faster charging, and delivers higher performance compared to standard low-voltage (48V) counterparts.

• 6 kW Capacity: The optimal balance for powering energy-intensive household appliances (air conditioners, pumps, electric stoves).

• Instant Backup Power (EPS): Automatic and uninterrupted power supply for your critical appliances during sudden blackouts.

• Advanced FoxCloud Monitoring: Convenient real-time tracking of generation and consumption from your smartphone (Wi-Fi module included).

• 2 MPPT Trackers: Allow solar panels to be installed on two different roof slopes for stable generation throughout the day.

• Compactness and Design: Modern minimalist appearance, aluminum casing, and quiet operation due to advanced natural cooling (IP65 protection rating).

Ideal For:

• Private houses with a single-phase connection and an increased level of energy consumption.

• Homeowners who require a more powerful and reliable backup power system during blackouts.

• Properties where aesthetics, space-saving, and quiet equipment operation are essential.

• Systems set up for the "Green Tariff" (Feed-in Tariff) or maximized self-consumption.

Technical Specifications:

• Nominal Output Power: 6 kW

• Max. Solar Array Power: 9.0 kW (up to 150% PV oversized)

• Phase: 1 (single-phase)

• Battery Type: High-Voltage (HV) Li-ion

• Battery Voltage Range: 85–450 V

• Number of MPPT Trackers: 2

• Efficiency: up to 97.4%

• Communication Interfaces: Wi-Fi (WL modification), LAN, RS485

• Protection Rating: IP65 (complete protection against dust and water, suitable for outdoor installation)

• Warranty: 10 years (base warranty)

Glossary / Explanation of Terms:

• High-Voltage (HV) Battery – A battery system with a high operating voltage (85V and above). It allows the inverter to operate with lower currents, which reduces cable heating and significantly increases the overall efficiency of the station.

• EPS (Emergency Power Supply) – A backup power function that instantly switches the house to battery operation when power from the main grid is lost.

• FoxCloud – The official smartphone application that displays user-friendly graphs showing how much energy the panels generated, how much the battery charged, and how much the house consumed.
