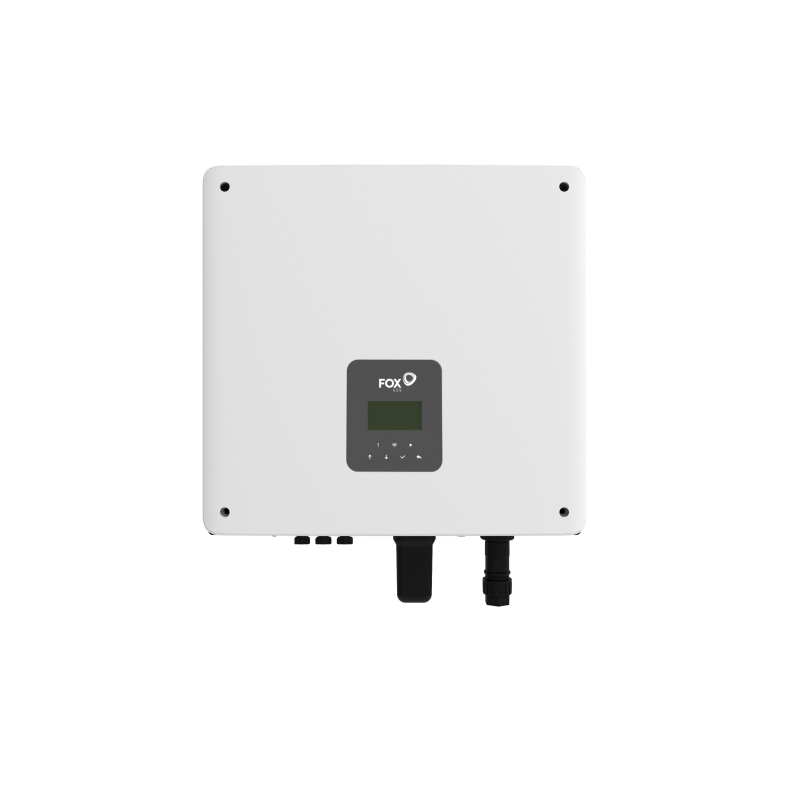

Hybrid Inverter Fox ESS H1-5.0-G2-WL (5 kW, 1 Phase, High Voltage)

The next-generation (G2) single-phase hybrid inverter with a capacity of 5 kW is a premium and innovative solution from Fox ESS designed to create a reliable home energy system. The key feature of this model is its compatibility with High Voltage (HV) batteries, which ensures maximum system efficiency, fast battery charging, and minimal energy losses.

Key Advantages:

• High Voltage (HV) System: Reduces energy losses, ensures faster charging, and delivers higher performance compared to standard low-voltage (48V) alternatives.

• Instant Backup Power (EPS): Automatic and seamless power supply for your critical appliances during sudden power outages.

• Advanced FoxCloud Monitoring: Convenient real-time control of energy generation and consumption via your smartphone (Wi-Fi module included).

• High Efficiency up to 97.4%: Maximum efficiency in converting solar energy into the grid or batteries.

• 2 MPPT Trackers: Allows for solar panel installation on two different roof slopes to maintain stable generation throughout the day.

• Compact & Sleek Design: Modern minimalist appearance, durable aluminum housing, and quiet operation due to an advanced cooling system (IP65 protection class).

Ideal For:

• Private houses with a single-phase grid connection and moderate energy consumption.

• Homeowners requiring a reliable backup power solution during blackouts.

• Properties where aesthetics, space-saving design, and quiet equipment operation are essential.

• Solar systems tailored for Feed-in Tariffs or maximizing self-consumption.

Technical Specifications:

• Nominal Output Power: 5 kW

• Max. PV Array Power: 7.5 kW (up to 150% oversizing)

• Phase: 1-Phase (single-phase)

• Compatible Battery Type: High Voltage (HV) Li-ion

• Battery Operating Voltage Range: 85–450 V

• Number of MPPT Trackers: 2

• Maximum System Efficiency: Up to 97.4%

• Communication Interfaces: Wi-Fi (module included, WL modification), LAN, RS485

• Protection Degree: IP65 (dust and waterproof, suitable for outdoor installation)

• Base Official Warranty: 10 years

Glossary:

High Voltage (HV) Battery — A battery system with a high operating voltage (85V and above). It enables the inverter to operate with lower currents, reducing cable heat generation and significantly increasing the overall efficiency of the solar station.

EPS (Emergency Power Supply) — A backup power function that instantly switches the house to battery power when a grid outage occurs.

FoxCloud — The official smartphone application that provides intuitive charts tracking how much energy the panels generate, how much goes into the battery, and how much the house consumes.
