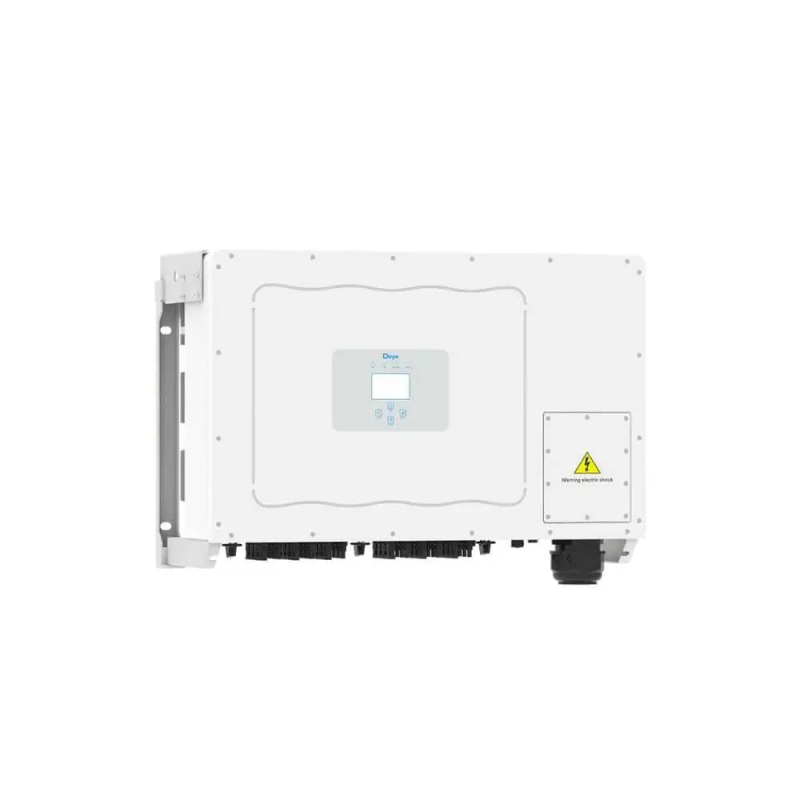

Grid-Tied Inverter Deye SUN-110K-G03

A three-phase 110 kW grid-tied inverter designed for large solar power plants and commercial facilities. It provides efficient conversion of solar energy to the utility grid, high generation performance, and reliable operation thanks to the professional string architecture of the G03 series.

The inverter is ideal for medium and large-scale PV systems where maximum energy yield and stable operation under varying lighting conditions are required.

Advantages:

• 110 kW power — an excellent choice for large private properties, commercial and industrial facilities.

• High efficiency up to 98.8% — minimal conversion losses.

• 6 MPPT controllers — optimal energy generation even with different panel orientations or partial shading.

• Wide MPPT range — efficient use of solar panels under various conditions.

• Intelligent protections: overvoltage, short circuit, overload, overheating, and insulation monitoring.

• Remote monitoring and control via Wi-Fi, RS485/RS232, LAN, or GPRS (optional).

• IP65 protection rating — suitable for outdoor operation without additional enclosures.

Suitable for:

• Large private homes with high energy consumption

• Commercial and industrial facilities

• Farms and agricultural enterprises

• Solar power plants under feed-in tariff programs

Technical Specifications Grid-Tied Inverter Deye SUN-110K-G03:

Rated power: 110 kW
Phases: 3
Efficiency: up to 98.8%
Number of MPPTs: 6
DC input voltage range: 200–850 V
Maximum DC power: up to 150 kW
Maximum DC input current: 40 A × 6
Maximum DC voltage: 1000 V
Rated AC output voltage: 220/380 V, 230/400 V
Max. AC active output power: ≈ 121 kW
Rated AC output current: ~166.7 / 159.5 A
Output power factor: 0.8…0.8
THDi (Total Harmonic Distortion): < 3%
Operating temperature: −25 °C…+60 °C (derating above 45 °C)
Protection class: IP65
Display: LCD (240 × 160)
Interfaces: RS485/RS232/Wi-Fi/LAN (optional)
Warranty: 10 years
