Hybrid inverter SUN-5K-SG05LP1-EU-Deye

Brand: Deye Product Code: 2
0
All about product
Description
Specification
Reviews 0
Recommended

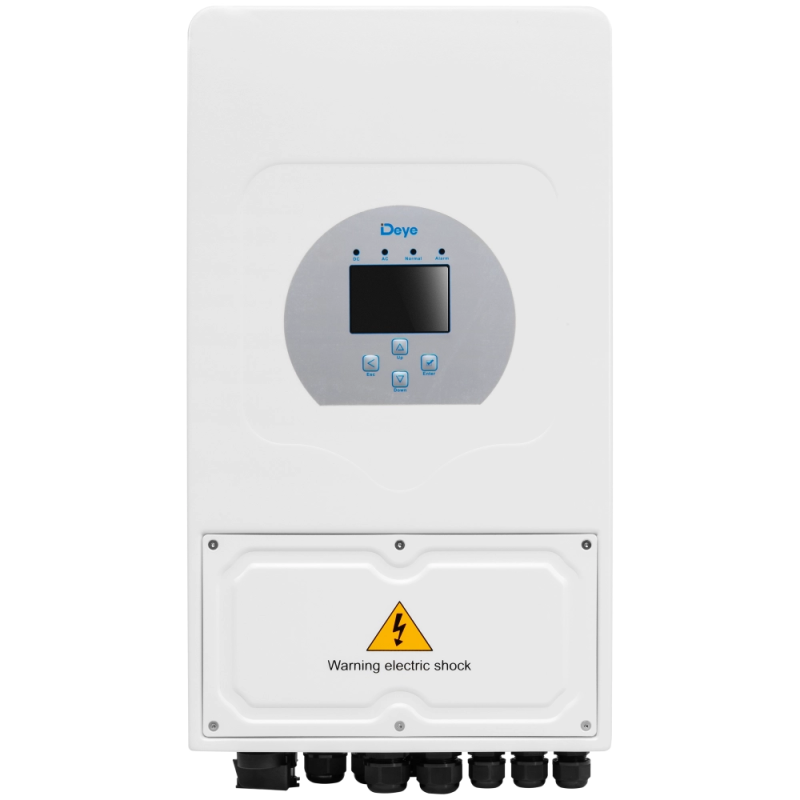

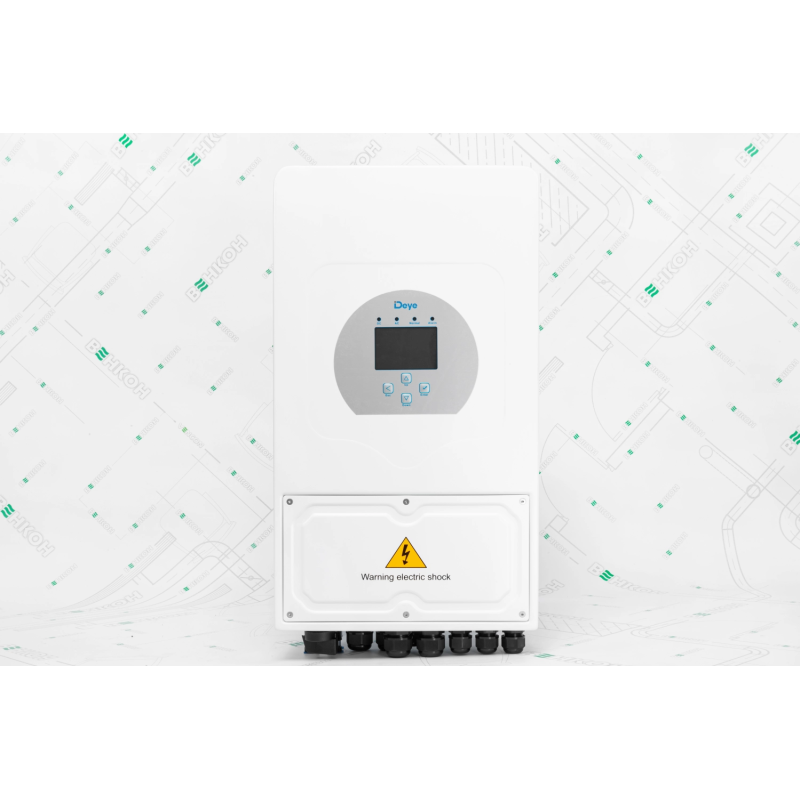

Hybrid inverter SUN-5K-SG05LP1-EU-Deye
Hybrid inverter SUN-5K-SG05LP1-EU-Deye
Hybrid inverter SUN-5K-SG05LP1-EU-Deye
2-3 Days
$950
Warranty, yrs:10 years
Max. DC input power (kW):6,5
Max. DC input voltage (V):500
Starting input voltage, DC (V):125
MPPT operating range (V):150 - 425
Datasheet SUN-5K-SG05LP1-EU-AM2-Pdownload icon
Manual SUN-5K-SG05LP1-EU-AM2-Pdownload icon
Delivery
By courier around the city (Odesa)
By courier around the city (Odesa)
free delivery
By Nova Poshta to the branch in Ukraine
By Nova Poshta to the branch in Ukraine
from 75 ₴
Ukrposhta to the branch in Ukraine
Ukrposhta to the branch in Ukraine
from 35 ₴
Payment
payment on account payment on account
In cash In cash
Customer support
Customer support service
24/7 without days off
Hybrid inverter SUN-5K-SG05LP1-EU-Deye
$950
Description

Hybrid inverter SUN-5SUN-5K-SG05LP1-EU-Deye

Single-phase hybrid inverter with 5 kW output for residential solar systems. Works with the grid, solar panels, and batteries simultaneously, ensuring energy independence and reliable backup power.

Benefits:

  • 5 kW capacity — ideal for medium-sized households.
  • Hybrid mode — grid + solar panels + batteries.
  • Efficiency up to 97.6% — minimal energy loss.
  • 2 MPPT trackers — stable generation under varied panel placement.
  • UPS function — instant switch to backup power.
  • Smart battery charge/discharge management.
  • IP65 protection — suitable for outdoor installation.
  • Remote monitoring via Wi-Fi or RS485.

Suitable for:

  • Residential houses
  • Cottages and summer houses
  • Small offices
  • Facilities with unstable power supply

Technical specifications:

  • Nominal power: 5 kW
  • Phase: 1
  • Efficiency: up to 97.6%
  • MPPT trackers: 2
  • DC input range: 125–500 V
  • Max current: up to 12.5 A per MPPT
  • UPS mode: supported
  • Interfaces: RS485, Wi-Fi
  • Dimensions: 458 × 565 × 188 mm
  • Weight: ~20 kg
  • Protection rating: IP65
  • Warranty: 10 years

Glossary:

  • MPPT (Maximum Power Point Tracking) — technology to optimize solar power generation.
  • UPS — uninterruptible power supply with instant switchover.
Specifications
Main characteristics
Warranty, yrs
10 years
Inverters
Max. DC input power (kW)
6,5
Max. DC input voltage (V)
500
Starting input voltage, DC (V)
125
MPPT operating range (V)
150 - 425
Max. DC input current (A)
13 + 13
Number of MPP trackers
2
Number of rows on the MPP tracker
1+1
Nominal output power (kW)
5
Max. Active power (kW)
5,5
Nominal output voltage / Range (V)
220 / 230 В (±15%)
Nominal network frequency (Hz)
50
Working phase
Single-phase
Nominal output current of the AC network (A)
21,7
Max. AC output current (A)
24
Output power factor
0.8 ahead to 0.8 behind
Total harmonic distortion (THD) of the mains current
< 3%
Direct current injection current (mA)
< 0,5% In
Network frequency range
50 / 45–55 Гц
Operating temperatures
-25~60℃
Safety EMC/Standard
IEC62040-1,IEC62109-1/-2,IEC61000-6-1,IEC61000-6-3,IEC61000-3-11, IEC61000-3-12, IEC61000-4-16,IEC61000-4-18,IEC61000-4-29
Protection rating
IP65
Display
LCD
Interface
RS485 / CAN / Wi-Fi
